Product outline
NV-IP-JP4-60-TX-10: 1Gb 4K60 HDR 4:4:4, 2K30 Multi-Stream Encoder
- 1Gb 4K60 HDR 4:4:4 PoE Encoder
- 2K30 Low Bandwidth Real-time-stream-protocol (RTSP) including stereo audio
- Connected device control via IR, RS-232-CEC
- ContentPlus+ distribution modes, including:
- Embed live content to digital signage platforms.
- High-quality 2K30 audio-video decoding through wired and wireless applications (VLC)
- Personal device streaming with audio and source control using the Netvio Go-AV Control App
- Capture live content seamlessly for internet broadcasting using live production software.
- Embedding live content into control interfaces, including Netvio Go-AV Control
- Analog & Digital Audio encoding (including ARC/eARC routing)
- Alternative audio content overlay
NV-IP-JP4-60-RX-10: 1Gb 4K60 HDR 4:4:4, Multi-Stream Decoder & Video Wall Processor
- 1Gb 4K60 HDR PoE Decoder & Video Wall Processor
- Processes landscape and portrait video walls upto 16×16
- Onboard 4K/2K scaling allowing support for legacy displays
- Ultra-low latency including Genlock synchronization between devices
- Enhanced compatibility mode tailored for video conferencing hubs, laptops and commercial displays
- ARC/eARC Capture & Routing
- Connected device control via IR, RS-232-CEC
-
Application
-
Technical info
Audio | Video
- Supports HDMI2.0b 18Gb HDMI input signal.
- Compliance up to HDCP2.2
- Max Video Transmission 3840×2160 60fps 4:4:4 8bit
- Video signal over LAN not exceeding 850Mbs
- HDR Support at 4K60 4:2:2 10bit
- IP Preview (RTSP) Main Output 1920×1080 30fps + LPCM 2.0 audio
- IP Preview Sub Output 960×580 30fps
- Enhanced compatibility mode ideal conference hubs, laptop & commercial display integration.
- HDMI Loop Out (TX) 3840×2160 60fps 8b 4:4:4
- HDR Compatible including HDR10, HLG, HDR10+ & Dolby Vision
- Scaler capable of 4K to 2K
- End to Latency =< less than 1 video frame
- LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master, DTS:X
- Multiple audio connectivity including analog and digital options.
- Supports ARC/eARC capture & routing.
- Ability to embed additional audio source to HDMI signal via encoder.
Electrical & Mechanical
Product Approvals: CE, UKCA, FCC, RoSH
Product Dimensions: W: 205mm x D: 100m x H: 22mm
Package Dimensions: W: 255mm x D: 157mm x H: 77mm
Unit Weight: 500g
Package Weight: 900g
Power: IEEE 802.3af (10watts max per device).
Operating temperature: -20 ºC to 60ºC
Storage temperature: -20ºC to 60ºC
BTU: 30 Btu/hr nominalSoftware & Control
- Compatible with Netvio360 for discovery, configuration, security, management & routing.
- Independent control signal routing of IR, RS-232 & CEC.
- Available control system drivers include Crestron, Control4, Savant, RTi, Elan & Q-sys.
- Onboard Netvio-Go-Control, a license-free app, provides a compelling alternative to traditional control systems. Tailored for a streamlined and less complex AV experience.
- Onboard IR & RS-232 ports, with signal routing via control system.
Box Contents:
- Encoder or Decoder device
- Wall mounting brackets
- Phoenix connectors for RS-232 and audio
- IR TX & IR RX Accessories.
Works with:
- IP-JP4-CL-10 (Secure IP Terminal/Controller)
- IP-JP4-60-DNT Encoders & Decoders
- IP-RK-10 (Rack)
- IP-SW-24P-10 (Network Switch)
- IP-SW-48P-10 (Network Switch)
- TS-13-10 (Touch Panel)
- Not compatible with IP-JP4 series products.
Approved Network Switches:
- Netvio IP-SW Series
- Netgear AV Line
- Cisco Catalyst, SG & CBS Series
- Draytek P Series
- Araknis 210, 310 Series
- Cambium EX2000 & EX3000 Series
- Plus more layer 2 managed switches compatible
-
Warranty
Netvio 5-year standard product warranty.
-
Reviews
No reviews yet, for the meantime would you take one minute to leave a feedback about your experience?
Leave a Review -
Downloads
Netvio JP4-60 4K60 4:4:4 Encoder (TX) & Decoder (RX)
1Gb | 4K60 4:4:4 | 1080p preview | Video Wall | IR | RS-232 | CEC | USB2.0 KVM
Netvio’s premium AVoIP solution, the JP4-60 series delivers pixel-for-pixel quality, faster & smoother switching, and lower latency. Provides the ultimate viewing experience ideal for today’s larger screen formats or close content viewing applications.
This high performance AVoIP encoder and decoder system allows for 1Gb IP streaming of 4K60 HDR 4:4:4 content from various HDMI media sources direct to display connections. Delivering a multi-functional AVoIP solution for all of your audio, data, video, KVM, video wall and control needs.
FREE Software & Control:
- Netvio360 (PC, Mac) – Discovery, configure, optimise, design, control
- NetvioGO (iOS, Android) – Full spectrum end user AV control
Select Colour Option:
- Description
- Order
- Price (AUD$)
- Product Code
- Stock Level
- Carton's QTY
-
4K60, Encoder
2,361.00 (incGST) NV-IP-JP4-60-TX-10 In stock -
4K60, Decoder
2,361.00 (incGST) NV-IP-JP4-60-RX-10 In stock
Related Products
Netvio JP4 4K30 Encoder (TX) & Decoder (RX)
Netvio JP4 4K30 Encoder (TX) & Decoder (RX)
JPEG2000 1Gb | 4K30 HDR | 1080p preview | Video Wall | IR | RS-232 | CEC | USB2.0 KVM
The workhorse of AVoIP, Netvio’s JP4 series is a high performance JPEG2000 encoder and decoder system allowing for 1Gb IP streaming of 4K HDR 4:2:0 content from various HDMI media sources direct to display connections. Delivering a multi-functional AVoIP solution for all of your audio, data, video, KVM, video wall and control needs.
FREE Software & Control:
- Netvio360 (PC, Mac) – Discovery, configure, optimise, design, control
- NetvioGO (iOS, Android) – Full spectrum end user AV control
Netvio JP4-60-DNT Dante AV-A Encoder (TX) & Decoder (RX)
Netvio JP4-60-DNT Dante AV-A Encoder (TX) & Decoder (RX)
1Gb | 4K60 4:4:4 | Dante AV-A |1080p preview | Video Wall | IR | RS-232 | CEC | USB2.0 KVM
In a strategic alliance with Audinate, Netvio fully embraces the new standard in audio and video compatibility through the launch of Netvio’s JP4-60-DNT series AVoIP encoders and decoders. The DNT devices ensure top-tier video quality up to 4K60 4:4:4 Resolution, with independently routable audio and video flows, facilitating Compatibility with installed DSPs, amplifiers, or speakers. Also delivering data, video, KVM, video wall and control functionality.
Used in two distinctive modes, the DNT encoders and decoders can operate exclusively within Dante’s new AV-A managed solution or be part of a traditional Netvio-based configuration workflow.
FREE Software & Control:
- Netvio360 (PC, Mac) – Discovery, configure, optimise, design, control
- NetvioGO (iOS, Android) – Full spectrum end user AV control

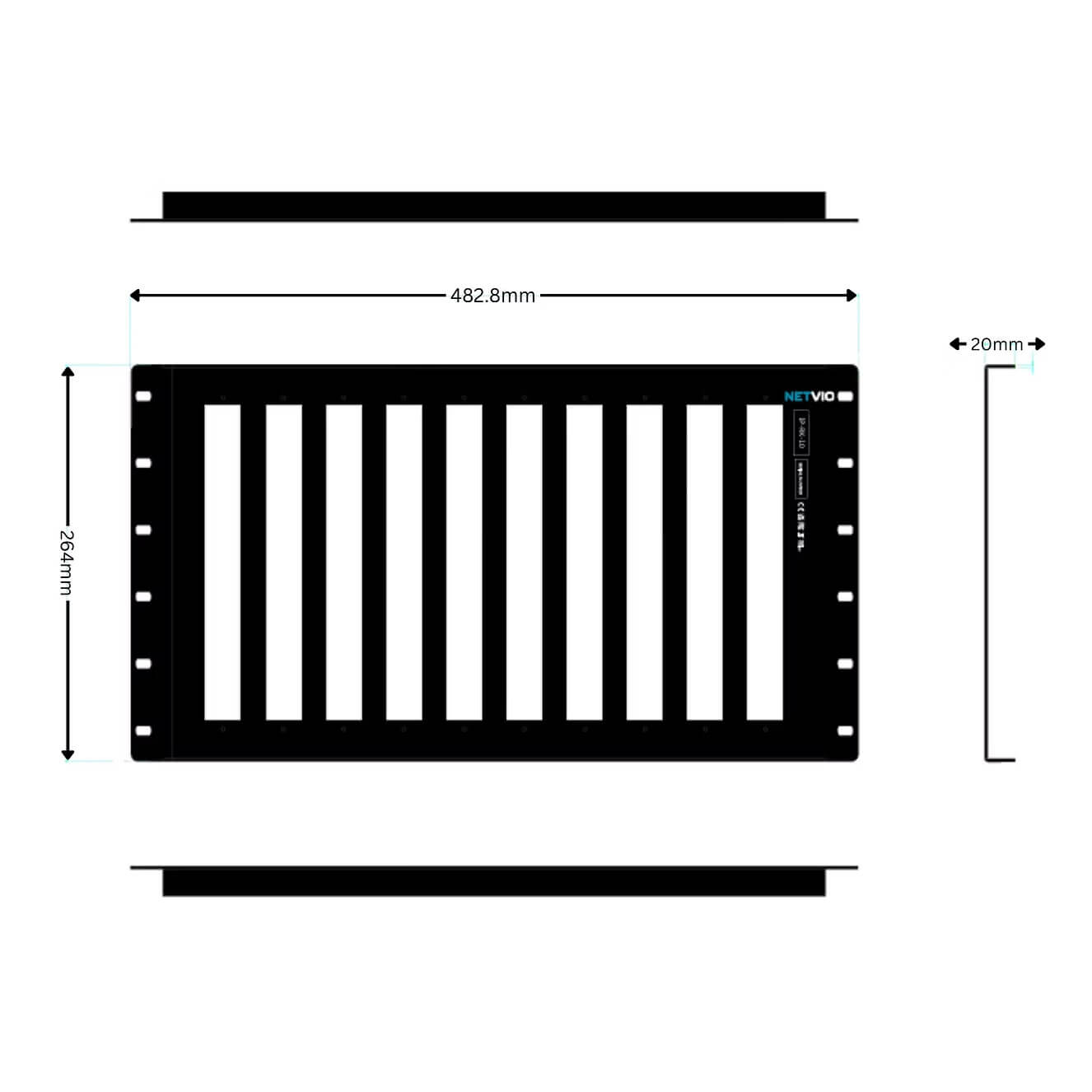

Netvio 19″ Universal 6U Rack Mount
